2.9 Percentage cover of zoanthids and gorgonians

This page aggregates the gorgonian and zoantharian components of the benthos into the groupings monitored by TCRMP and VINPS, then plots their percent cover through time at each survey site. Gorgonians (soft corals and sea fans) and zoanthids are recorded together here because both programs report them at the same coarse grouping. The page groups every survey record by gorgonian or zoanthid type and averages cover across replicate transects at each site and year. It produces the faceted cover-over-time figure (Figure 1) and a downloadable long-format cover table (s2pt9_benthicCoverZoanthidGorgonians) that feeds the downstream resilience and biodiversity pages.

Data sources

This page uses the reformatted benthic cover and cross-referenced benthic codes produced in sections 2.1 and 2.2 from the TCRMP and VINPS monitoring programs; CSUN does not enter this page. The benthic codes are filtered to the Gorgonian and Zoanthid categories, and the site master table orders facets by depth. TCRMP and VINPS both record replicate transects at each site, so their site-year means carry standard error, and VINPS begins in 1999, later than TCRMP, so the earliest years hold TCRMP sites only. The derived cover table produced here is available in the Downloads section below.

Load workspace and define variables

What happens here: the page loads the per-program benthic cover and the benthic-code cross-reference produced by the section 2.1 reformat and the section 2.2 cross-referencing step, then names the grouping variable and the output section tag used later for file naming.

Show code

load("benthicCoverXrefBenthicCodes.RData")

subfoldername names where the grouped cover products are written. groupingvar sets the taxonomic grouping for this page (zoanthidsGorgonians). section tags the output filenames (s2pt9).

Show code

subfoldername <- "benthicCoverGrouped"
groupingvar <- "zoanthidsGorgonians"
section <- "s2pt9" # for naming

Reorganize `benthicDat` into subgroupings of interest

The benthic-code cross-reference is filtered to the Gorgonian and Zoanthid categories, so the grouping below covers exactly the gorgonian and zoantharian types reported on this page.

Show code

benthicCodes <-
  benthicCodes[which(benthicCodes$tcrmp_Category %in% c("Gorgonian", "Zoanthid")), ]

The shared cross-reference include below matches every program’s benthic-data columns to their gorgonian or zoanthid group, builds one grouped cover table per program, merges TCRMP and VINPS, and melts the result to long format. Its UAGA guard warns if any program’s data column carries a code absent from benthicCodes, so a group cannot be silently dropped.

`getBenthicDatColInds()`

this is one of two functions that connect benthicDat to benthicCodes for all three programs.

getBenthicDatColInds() makes _columnInds that stores column indices of benthic codes corresponding to each item of zoanthidsGorgonians arguments:

benthicDat is benthic dataset of interest
codecolumn is the name of the column of benthic code containing the code for benthicdat
groupingcolumn is the name of the column of benthic codes where the grouping variable of interest is stored.

Show code

getBenthicDatColInds <-
  function(benthicDat, codecolumn, groupingcolumn) {
    codecolind <-
      which(colnames(benthicCodes) == codecolumn)
    groupingcolind <-
      which(colnames(benthicCodes) == groupingcolumn)
    genusdf <-
      data.frame(group =
                   unique(benthicCodes[, groupingcolind]),
                 colinds =
                   rep(0, length(unique(benthicCodes[, groupingcolind]))))
    for (i in 1:nrow(genusdf)) {
      codei <-
        benthicCodes[which(benthicCodes[, groupingcolind] == genusdf$group[i]), ]
      genusdf$colinds[i] <-
        list(which(colnames(benthicDat) %in% codei[, codecolind]))
    }
    # UAGA-guard: warn on benthicDat data columns whose code is absent from benthicCodes and is
    # therefore silently dropped (the footgun that lost VINPS Agaricia agaricites, code UAGA).
    .known <- benthicCodes[[codecolind]]; .known <- .known[nchar(.known) > 0]
    .meta_cols <- c("program","date","site","period","replicate","replicatetype","nopts",
                    "Year","Date","SiteFullName","year","month","percentCover_allCoral",
                    "PC","Check","Notes","Transect")
    .dropped <- setdiff(colnames(benthicDat), c(.known, .meta_cols))
    if (length(.dropped) > 0)
      warning("getBenthicDatColInds(", codecolumn, "): ", length(.dropped),
              " data column(s) have codes absent from benthicCodes and are DROPPED: ",
              paste(.dropped, collapse = ", "), " -- add them to benthicCodes if they are taxa.")
    return(genusdf)
  }

apply getBenthicDatColInds() to _benthicDat dataframes . preview tcrmp_columnInds

Show code

tcrmp_columnInds <-
  getBenthicDatColInds(tcrmp_benthicDat, "tcrmp_Code", "tcrmp_Meaning")
vinps_columnInds <-
  getBenthicDatColInds(vinps_benthicDat, "vinps_TaxonCode", "tcrmp_Meaning")

kbl(tcrmp_columnInds) |>
  kable_paper(full_width = F) |>
  kable_styling(
    fixed_thead = T,
    bootstrap_options = c("hover", "condensed"),
    font_size = 8
  ) |>
  scroll_box(width = "100%", height = "250px")

group	colinds
Briareum asbestinum	70
Erythropodium caribaeorum	72
Encrusting Gorgonian	71
Sea fan	73
Gorgonian	74
Palythoa caribaeorum	87
Sea plume	75
Sea rod	76
Sea whip	77
Zoanthids	88
Zoanthus sociatus	89

`makeGroupedBenthicDat()`

this is the second function that connects benthicDat to benthicCodes for all three programs.

makeGroupedBenthicDat() extracts the column indices (colinds) from each row of *_columnInds.

If only one index in colinds , assigns the corresponding column from benthicdat to the i-th column of a data frame _groupedBenthicDat.

if more than one index in colinds, stores row sum of benthicDat[,colinds] in the i-th column of _groupedBenthicDat.

arguments:

benthicDat is benthic dataset of interest
columnInds is the output of getBenthicDatColInds() above that contains column indices of benthic codes for each benthic subgroup of interest

Show code

makeGroupedBenthicDat <- function(benthicDat, columnInds) {
  groupeddat <- data.frame(matrix(nrow = nrow(benthicDat),
                                  ncol = nrow(columnInds)))
  colnames(groupeddat) <- columnInds$group
   benthicDat <- benthicDat %>% dplyr::mutate(dplyr::across(dplyr::where(is.numeric), ~replace(.x, is.na(.x), 0)))
  for (i in 1:nrow(columnInds)) {
    geni <- columnInds[i,]
    datcoli <- unlist(geni$colinds)
    if (length(datcoli) == 1) {
      groupeddat[, i] <- benthicDat[, datcoli]
    } else {
      groupeddat[, i] <- rowSums(benthicDat[, datcoli])
    }
  }
  groupeddat <- cbind(benthicDat[, 1:6], groupeddat)
  return(groupeddat)
}

apply makeGroupedBenthicDat() to _benthicDat and _columnInds . preview tcrmp_groupedBenthicDat.

Show code

tcrmp_groupedBenthicDat <-
  makeGroupedBenthicDat(tcrmp_benthicDat, tcrmp_columnInds)
vinps_groupedBenthicDat <-
  makeGroupedBenthicDat(vinps_benthicDat, vinps_columnInds)

kbl(head(tcrmp_groupedBenthicDat)) |>
  kable_paper(full_width = F) |>
  kable_styling(
    fixed_thead = T,
    bootstrap_options = c("hover", "condensed"),
    font_size = 8
  ) |>
  scroll_box(width = "100%", height = "250px")

program	date	site	period	replicate	replicatetype	Gorgonian
TCRMP	2001-04-25	Cane Bay	Annual	1	transect	0.00
TCRMP	2001-04-25	Cane Bay	Annual	2	transect	2.34
TCRMP	2001-04-25	Cane Bay	Annual	3	transect	2.71
TCRMP	2001-04-25	Cane Bay	Annual	4	transect	2.90
TCRMP	2001-04-25	Cane Bay	Annual	5	transect	0.39
TCRMP	2001-04-25	Cane Bay	Annual	6	transect	0.38

merge the `benthicDat` from three programs

now have three _groupedBenthicDat, need to merge them, start by comparing the column names, because some are missing from csun.

make sure each _groupedBenthicDat has the same column names

get unique column names across all data frames

Show code

all_columns <-
  unique(c(
    colnames(tcrmp_groupedBenthicDat),
    colnames(vinps_groupedBenthicDat)
    ))

identify missing columns in each data frame

Show code

missing_columns_tcrmp <-
  setdiff(all_columns, colnames(tcrmp_groupedBenthicDat))
missing_columns_vinps <-
  setdiff(all_columns, colnames(vinps_groupedBenthicDat))

add missing column with NAs.

Show code

for (col in missing_columns_tcrmp) {
  tcrmp_groupedBenthicDat[[col]] <- NA
}
for (col in missing_columns_vinps) {
  vinps_groupedBenthicDat[[col]] <- NA
}

reorder columns to match unique column order

Show code

tcrmp_groupedBenthicDat <- tcrmp_groupedBenthicDat[, all_columns]
vinps_groupedBenthicDat <- vinps_groupedBenthicDat[, all_columns]

combine the modified data frames using rbind to make groupedBenthicDat.

Show code

groupedBenthicDat <-
  rbind(tcrmp_groupedBenthicDat,
        vinps_groupedBenthicDat)

add column year

Show code

groupedBenthicDat <-
  cbind(year = lubridate::year(groupedBenthicDat$date),
        groupedBenthicDat)

melt groupedBenthicDat into long format.

Show code

groupedBenthicDat <- groupedBenthicDat |>
  tidyr::gather(!!groupingvar, "perccover", 8:ncol(groupedBenthicDat))

groupedBenthicDat <- groupedBenthicDat |>
  filter(!is.na(perccover))

make column pres to indicate whether zoanthidsGorgonians was present or absent

Show code

groupedBenthicDat$pres <- rep(0, nrow(groupedBenthicDat))
groupedBenthicDat$pres[groupedBenthicDat$perccover > 0] <- 1

Summarize and plot

For TCRMP and VINPS, the page calculates annual transect-averaged percent cover of gorgonian and zoantharian types at each site. Total cover is summed within each transect first, then averaged across transects with standard error, so the black total-cover points and their linerange reflect site-year replication.

Annual percentage total cover

Show code

totaldatCovSum <- groupedBenthicDat |>
  dplyr::group_by(year, date, program, site, period, replicate) |>
  dplyr::summarise(perccover = sum(perccover))

totaldatCovSum <- totaldatCovSum |>
  dplyr::group_by(year, date, program, site) |>
  dplyr::summarise(
    meancov = mean(perccover),
    sdcov = sd(perccover),
    secov = sd(perccover) / (sqrt(length(perccover))),
    n = length(perccover)
  )

totaldatCovSum <- totaldatCovSum %>% dplyr::mutate(dplyr::across(dplyr::where(is.numeric), ~replace(.x, is.na(.x), 0)))

Annual percentage cover of gorgonian/zoanthid types

Show code

groupedBenthicDatCovSum <- groupedBenthicDat |>
  dplyr::group_by(year, date, program, site, zoanthidsGorgonians) |>
  dplyr::summarise(
    meancov = mean(perccover),
    sdcov = sd(perccover),
    secov = sd(perccover) / (sqrt(length(perccover))),
    n = length(perccover)
  )
groupedBenthicDatCovSum <- groupedBenthicDatCovSum %>% dplyr::mutate(dplyr::across(dplyr::where(is.numeric), ~replace(.x, is.na(.x), 0)))

Plot

Figure 1 shows how each gorgonian and zoanthid type’s cover changes through time at every TCRMP and VINPS site, with facets ordered shallow to deep so depth patterns read down the panel. Stacked areas give each type’s contribution, and the black points with linerange give total cover with standard error.

Show code

#add site info so can plot according to increasing depth
groupedBenthicDatCovSum <-
  merge(groupedBenthicDatCovSum, sitedat, by = "site")
groupedBenthicDatCovSum <-
  groupedBenthicDatCovSum[order(groupedBenthicDatCovSum$depth), ]
groupedBenthicDatCovSum$site <- factor(groupedBenthicDatCovSum$site,
                                       levels = unique(groupedBenthicDatCovSum$site))

#add site info so can plot according to increasing depth
totaldatCovSum <-
  merge(totaldatCovSum, sitedat, by = "site")
totaldatCovSum <-
  totaldatCovSum[order(totaldatCovSum$depth), ]
totaldatCovSum$site <- factor(totaldatCovSum$site,
                              levels = unique(totaldatCovSum$site))

stack <- ggplot() +
  geom_area(
    data = groupedBenthicDatCovSum,
    aes(x = year, y = meancov, fill = zoanthidsGorgonians),
    position = 'stack'
  ) +
  # geom_line(data = totaldatCovSum, aes(x=year, y= meancov),color="black")+
  geom_point(
    data = totaldatCovSum,
    aes(x = year, y = meancov),
    color = "black",
    size = 0.5
  ) +
  geom_linerange(
    data = totaldatCovSum,
    aes(
      x = year,
      ymin = meancov - secov,
      ymax = meancov + secov
    ),
    color = "black",
    linewidth = 0.5
  ) +
  facet_wrap( ~ site, scales = "free_x") +
  ylab("percent cover") +
  scale_y_continuous(expand = c(0, 0)) +
  scale_x_continuous(
    expand = expansion(mult = 0.04),
    breaks = seq(minyear, maxyear, by = 1),
    labels = function(x)
        ifelse(x %% 5 == 0, paste0("'", substr(x, 3, 4)), "")
    ) +
  geom_vline(
    xintercept = 2005,
    color = "gray50",
    alpha = 0.5,
    lty = "dashed"
  ) +
  theme_bw() +
  theme(strip.text = element_text(size = 10)) +
  theme(legend.position = "bottom") +
  theme(panel.grid.major = element_blank(),
        panel.grid.minor = element_blank())

stack

# svg(filename="gorgzo.svg", width = 10, height =8)
# stack
# dev.off()

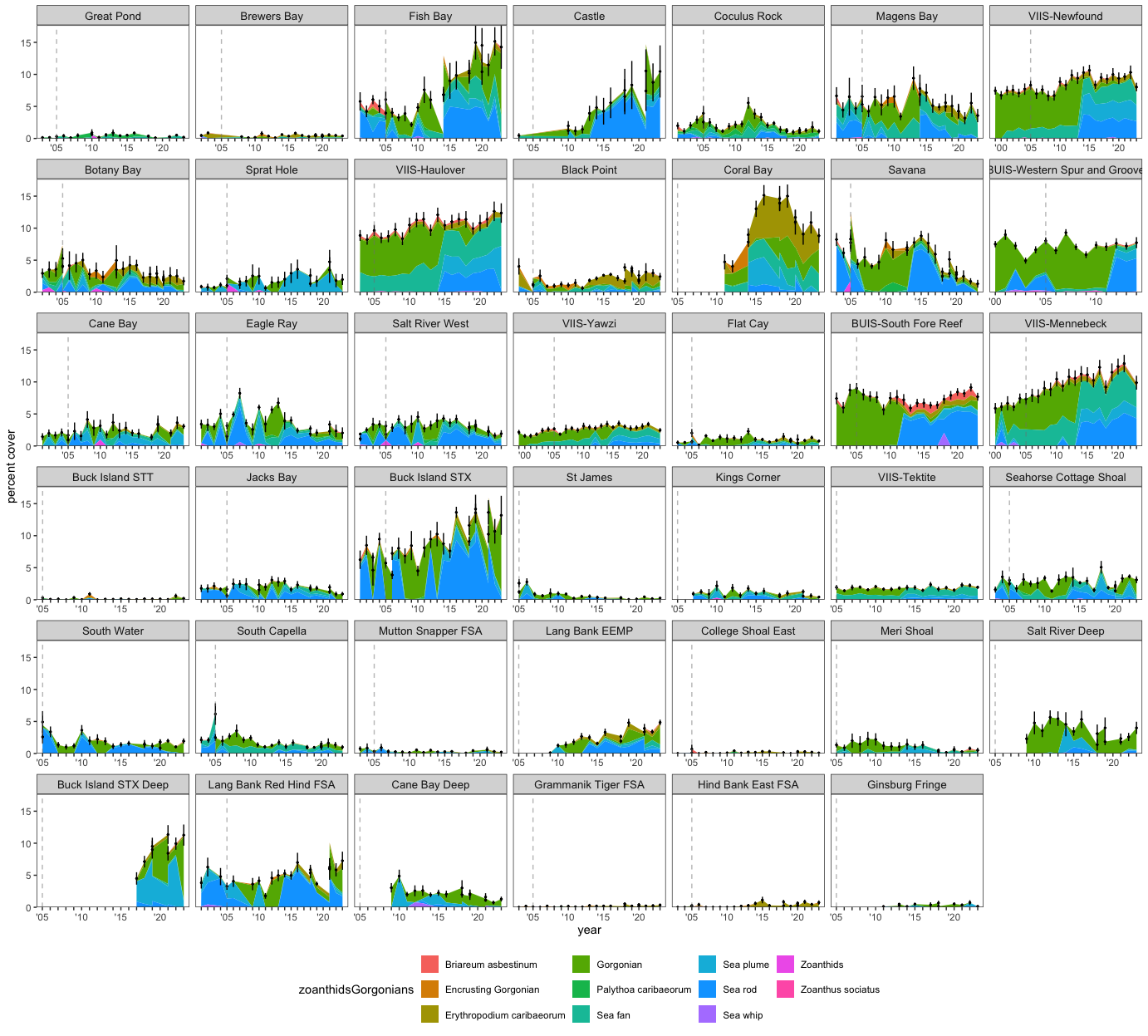

Sec 2.9 Figure 1: Percent cover of gorgonians and zoantharians over time at each site, separated by type. Sites are ordered from shallow to deep. Black points show average total cover +- SE. The dashed line marks the 2005 bleaching event.
