This page analyzes coral condition records from the Territorial Coral Reef Monitoring Program (TCRMP) colony-level health surveys. The workflow reads the colony, condition, interaction, and code tables, flags duplicate colony records across intercept and belt surveys, then computes the prevalence and mean extent of the disease, bleaching, and mortality condition categories at each TCRMP site over time. It produces a per-site time series for each condition, written as prevalence and extent CSVs plus matching metadata, and faceted figures that show each condition trend across sites from 2002 through 2023.
This page uses the TCRMP coral health colony surveys, reading the colony, condition, interaction, and benthic-code tables together with the site master for depth ordering. The condition time series are TCRMP-only, so transect replication supports the mean-and-spread display and no cross-program comparison applies here. The per-condition prevalence and extent series derived here are available in the Downloads section below.
condition_categories <- c("Disease", "Bleaching", "Mortality", "Damage")
start_year <- ymd("2002-1-1")
end_year <- embargo_date + 1 # embargo root: filter (EndDate < end_year) keeps condition data through embargo_date
start_year_c <- as.character(year(start_year))
end_year_c <- as.character(year(embargo_date))The workflow first reads the archived coral health tables (colonies, conditions, interactions, and codes) and the site master.
input_coralhealth_colonies_data <-
read.csv(
"../../outputs/_inputs/s3pt0_TCRMP_coralhealth_colonies_data_2002_2024.csv"
)
input_coralhealth_condition_data <-
read.csv(
"../../outputs/_inputs/s3pt0_TCRMP_coralhealth_condition_data_2002_2024.csv"
)
# change all ids to UPPERCASE
input_coralhealth_condition_data <- input_coralhealth_condition_data %>%
mutate(id = toupper(id))
input_coralhealth_interaction_data <-
read.csv(
"../../outputs/_inputs/s3pt0_TCRMP_coralhealth_interaction_data_2002_2024.csv"
)
# change all ids to UPPERCASE
input_coralhealth_interaction_data <- input_coralhealth_interaction_data %>%
mutate(id = toupper(id))
input_benthiccodes <-
read.csv("../../outputs/_inputs/s3pt0_TCRMP_coralhealth_codes.csv")
# change all Code to UPPERCASE
input_benthiccodes <- input_benthiccodes %>%
mutate(Code = toupper(Code))
sitedat <-
read.csv(
"../../../RRSdata/00_RRS_dataCatalogStatus/00_RRS_siteMaster_allSites_data.csv"
)The workflow reads the current TCRMP master tables and renames their columns to match the names the rest of the page expects (keeping survey year). The column-matching diagnostics that guided the renaming were development checks and have been removed from the render.
input_coralhealth_colonies_data2 <- read.csv(
'../../../RRSdata/data_TCRMP/TCRMP_coral_health_May2002_Dec2025/TCRMP_coralhealth_colonies_master_May2002_Dec2025.csv'
)
input_coralhealth_condition_data2 <- read.csv(
'../../../RRSdata/data_TCRMP/TCRMP_coral_health_May2002_Dec2025/TCRMP_coralhealth_condition_master_May2002_Dec2025.csv'
)
input_coralhealth_interaction_data2 <- read.csv(
'../../../RRSdata/data_TCRMP/TCRMP_coral_health_May2002_Dec2025/TCRMP_coralhealth_interaction_master_May2002_Dec2025.csv'
)
input_benthiccodes2 <- read.csv(
'../../../RRSdata/data_TCRMP/TCRMP_coral_health_May2002_Dec2025/TCRMP_coralhealth_codes_master_May2002_Dec2025.csv')
# Rename the colonies master columns to match the names the rest of the page uses
# (keep survey year).
input_coralhealth_colonies_data2 <- input_coralhealth_colonies_data2 %>%
rename(
Location = location,
SampleDate = sampledate,
Period = period,
SampleType = sampletype,
Method = method,
Recorder = recorder,
Transect = transect,
Species = species,
Length = length,
Width = width,
Height = height
) %>%
mutate(SampleDate = as.Date(SampleDate, format="%Y-%m-%d")) %>%
mutate(SurveyYear = surveyyear) %>%
select(colony_id, Location, SampleDate, Period, SampleType, Method, Recorder, Transect, Species, Length, Width, Height, SurveyYear)
# Rename the condition master columns to match.
input_coralhealth_condition_data2 <- input_coralhealth_condition_data2 %>%
rename(
id = code,
Meaning = code_meaning
) %>%
filter(!is.na(id)) %>%
select(colony_id, category, id, extent, surveyyear)
# Rename the interaction master columns to match.
input_coralhealth_interaction_data2 <- input_coralhealth_interaction_data2 %>%
rename(
id = code,
Meaning = code_meaning
) %>%
filter(!is.na(id)) %>%
select(colony_id, category, id, extent, surveyyear)
# The benthic codes master already matches (Code / Group / Category / Meaning).
# Adopt the renamed master tables as the working inputs for the rest of the page.
input_coralhealth_colonies_data <- input_coralhealth_colonies_data2
input_coralhealth_condition_data <- input_coralhealth_condition_data2
input_coralhealth_interaction_data <- input_coralhealth_interaction_data2
input_benthiccodes <- input_benthiccodes2
rm(input_coralhealth_colonies_data2,
input_coralhealth_condition_data2,
input_coralhealth_interaction_data2,
input_benthiccodes2)# start_year<- ymd("2012-1-1")
input_coralhealth_colonies_data <- input_coralhealth_colonies_data %>%
mutate(SampleDate = ymd(SampleDate)) %>%
filter(SampleDate > start_year) %>%
mutate(EndDate = ymd(SampleDate)) %>%
filter(EndDate < end_year)
input_coralhealth_condition_data <- input_coralhealth_condition_data %>%
filter(colony_id %in% c(input_coralhealth_colonies_data$colony_id))
input_coralhealth_interaction_data <- input_coralhealth_interaction_data %>%
filter(colony_id %in% c(input_coralhealth_colonies_data$colony_id))find_dupes identifies potential duplicate coral colony records across intercept and belt surveys.
find_dupes <- function(colonies_data, health_data, dimension_tolerance = 0.05) {
# Helper function to check if dimensions are within tolerance
dimensions_match <- function(l1, w1, h1, l2, w2, h2, tolerance) {
all(
abs(l1 - l2) / max(l1, l2, na.rm = TRUE) <= tolerance | (is.na(l1) & is.na(l2)),
abs(w1 - w2) / max(w1, w2, na.rm = TRUE) <= tolerance | (is.na(w1) & is.na(w2)),
abs(h1 - h2) / max(h1, h2, na.rm = TRUE) <= tolerance | (is.na(h1) & is.na(h2))
)
}
# Prepare the colonies data
prepared_colonies <- colonies_data %>%
mutate(year = year(SampleDate)) %>%
select(colony_id, Location, year, Transect, Species, Length, Width, Height, Method, SampleType)
# Prepare interaction data
interaction_ids <- health_data %>%
group_by(colony_id) %>%
summarise(interaction_ids = list(unique(id)))
# Find potential matches
potential_matches <- prepared_colonies %>%
inner_join(prepared_colonies,
by = c("Location", "year", "Transect", "Species"),
suffix = c("_1", "_2"),
relationship = "many-to-many") %>%
filter(
((Method_1 == "intercept" & str_detect(Method_2, "belt")) |
(Method_2 == "intercept" & str_detect(Method_1, "belt"))),
colony_id_1 != colony_id_2
) %>%
rowwise() %>%
filter(
dimensions_match(
Length_1, Width_1, Height_1,
Length_2, Width_2, Height_2,
dimension_tolerance
)
) %>%
ungroup()
# Check for shared interactions
final_matches <- potential_matches %>%
left_join(interaction_ids, by = c("colony_id_1" = "colony_id")) %>%
left_join(interaction_ids, by = c("colony_id_2" = "colony_id"), suffix = c("_1", "_2")) %>%
rowwise() %>%
mutate(
shared_interactions = length(intersect(interaction_ids_1, interaction_ids_2)),
both_missing_interactions = is.null(interaction_ids_1) && is.null(interaction_ids_2)
) %>%
filter(
shared_interactions > 0 || both_missing_interactions
) %>%
ungroup() %>%
select(-ends_with("_ids_1"), -ends_with("_ids_2"))
# Reorder columns so that "belt" method is always first
final_matches <- final_matches %>%
mutate(
belt_is_first = str_detect(Method_1, "belt"),
across(everything(), ~if_else(belt_is_first, ., lead(.))),
across(everything(), ~if_else(belt_is_first, ., lag(.)))
) %>%
select(-belt_is_first) %>%
distinct() # Remove any potential duplicates after reordering
return(final_matches)
}The workflow applies find_dupes to the loaded data.
dupe_results <- suppressWarnings(find_dupes(input_coralhealth_colonies_data, input_coralhealth_interaction_data))The function flags 1635 potential duplicate colonies out of 80639 total colonies.
The removal step below is intentionally left inactive: the flagged belt-survey records are not dropped in the current run, so the duplicate detection serves as a review flag rather than a filter.
# input_coralhealth_colonies_data <- input_coralhealth_colonies_data %>%
# filter(!colony_id %in% dupe_results$colony_id_1)
#
# input_coralhealth_interaction_data <- input_coralhealth_interaction_data %>%
# filter(!colony_id %in% dupe_results$colony_id_1)
#
# input_coralhealth_condition_data <- input_coralhealth_condition_data %>%
# filter(!colony_id %in% dupe_results$colony_id_1)process_health_data transforms the coral survey data into a structured format for analysis, focusing on one health category (for example bleaching or disease) at a time.
# category_name <- "Bleaching" # Example category name
# input_coralhealth_colonies_data <- input_coralhealth_colonies_data %>% filter(SampleDate == "2005-09-26")
#
# input_coralhealth_condition_data <- input_coralhealth_condition_data
# input_benthiccodes <- input_benthiccodes
# default_condition_name <- NULL # Example default condition name
# exclude_conditions <- NULL # Example conditions to exclude
# values_function <- mean # Function to calculate values (mean, sum, etc.)
# output_type <- "extent" # Type of output (extent or prevalence)
process_health_data <-
function(category_name,
input_coralhealth_colonies_data,
input_coralhealth_condition_data,
input_benthiccodes,
default_condition_name = NULL,
exclude_conditions = NULL,
values_function = mean,
output_type = "extent",
minval = 0 # the minimum extent (in % in order to count as prevalence)
) {
# Step 1: Prepare the colony data
colony_data <- input_coralhealth_colonies_data %>%
select(colony_id,
Location,
SampleDate,
SurveyYear,
Period,
SampleType,
Method,
Transect,
Species) %>%
# filter(Period == "Annual") %>%
mutate(
# year = year(SampleDate),
year = SurveyYear,
program = "TCRMP",
replicatetype = "transect"
) %>%
rename(
coralspp = Species,
site = Location,
replicate = Transect,
date = SampleDate,
period = Period,
sampletype = SampleType,
method = Method
)
# Step 2: Join with condition data for the specified category
condition_data <- input_coralhealth_condition_data %>%
filter(category == category_name) %>%
select(colony_id, id, category, extent)
merged_data <- colony_data %>%
left_join(condition_data, by = "colony_id")
# Step 3: Join with benthic codes to get condition meanings
benthic_codes <- input_benthiccodes %>%
filter(Category == category_name) %>%
select(Code, Meaning)
final_data <- merged_data %>%
left_join(benthic_codes, by = c("id" = "Code")) %>%
mutate(
condition = ifelse(
is.na(Meaning),
ifelse(
is.null(default_condition_name),
paste0("No ", category_name),
default_condition_name
),
Meaning
)
# Do not replace NA extents; keep observed NAs
) %>%
select(
program,
site,
year,
date,
replicate,
replicatetype,
coralspp,
colony_id,
extent,
condition,
period,
sampletype,
method
) %>%
arrange(site, year, date, replicate, colony_id)
# Exclude specific conditions if needed
if (!is.null(exclude_conditions)) {
final_data <- final_data %>%
filter(!condition %in% exclude_conditions)
}
# july 28 2025 change extent from 0 to NA (or from NA to zero?) ah
# final_data_2 <- final_data %>%
# mutate(extent = ifelse(extent == 0, NA_real_, extent))
# mutate(extent = ifelse(is.na(extent), 0, extent))
# Step 4: Pivot the data to wide format
pivoted_data <- final_data %>%
pivot_wider(
names_from = condition,
values_from = extent,
values_fn = function(x) {
if (all(is.na(x))) {
NA # All extents are NA; keep as NA
} else {
values_function(x, na.rm = TRUE)
}
},
values_fill = NA # Fill missing combinations with zero
)
# Step 5: Adjust column names to lowercase and remove spaces
# Identify non-condition columns
non_condition_columns <- c(
"program",
"site",
"year",
"date",
"replicate",
"replicatetype",
"coralspp",
"colony_id",
"period",
"sampletype",
"method"
)
# Get condition columns
condition_columns <- setdiff(names(pivoted_data), non_condition_columns)
# Create a mapping of old names to new names
new_condition_names <- condition_columns %>%
set_names(.) %>%
map_chr(~ gsub(" ", "", tolower(.x)))
# # Rename the condition columns
# pivoted_data <- pivoted_data %>%
# rename_at(vars(condition_columns), ~ new_condition_names[.])
# Rename the condition columns using rename_with() and all_of()
pivoted_data <- pivoted_data %>%
rename_with( ~ new_condition_names[.], .cols = all_of(condition_columns))
# Update 'No category' and 'Any category' names
if (is.null(default_condition_name)) {
no_category_name <- gsub(" ", "", tolower(paste0("No ", category_name)))
} else {
no_category_name <- gsub(" ", "", tolower(default_condition_name))
}
any_category_name <- gsub(" ", "", tolower(paste0(
"Any ", category_name
)))
# Step 6: Calculate 'No category' and 'Any category'
# Exclude 'No category' column from sum
condition_columns_to_sum <- setdiff(
names(pivoted_data),
c(non_condition_columns, no_category_name)
)
# Handle cases where any condition extents are NA
pivoted_data <- pivoted_data %>%
rowwise() %>%
mutate(
total_extent = sum(across(all_of(
condition_columns_to_sum
)), na.rm = TRUE),
any_conditions_na = any(is.na(across(
all_of(condition_columns_to_sum)
))),
!!no_category_name := sum(c(100, -total_extent), na.rm = TRUE),
!!any_category_name := total_extent
) %>%
ungroup() %>%
select(-total_extent, -any_conditions_na)
# Step 7: Convert to prevalence if output_type says so
if (output_type == "prevalence") {
# Convert extent columns to prevalence
prevalence_data <- pivoted_data %>%
mutate(
across(
all_of(
c(
condition_columns_to_sum,
no_category_name,
any_category_name
)
),
# ~ case_when(
# . == 0 ~ 0,
# # Extent is 0, prevalence is 0
# is.na(.) ~ 1,
# # Extent is NA, prevalence is 1
# . > 0 ~ 1
# # Extent > 0, prevalence is 1
# ))) |>
# select(-all_of(no_category_name)) # Remove 'No category' column
# pivoted_data <- prevalence_data
~ case_when(
. <= minval ~ 0,
# Extent is less than or equal to minval, prevalence is 0
. > minval ~ 1,
# Extent is > minval, prevalence is 1
is.na(.) ~ 0,
# Extent is NA, prevalence is 0
# . > 0 ~ 1
# Extent > 0, prevalence is 1
))) |>
select(-all_of(no_category_name)) # Remove 'No category' column
pivoted_data <- prevalence_data
}
return(pivoted_data)
}
# NEW
process_health_data <-
function(category_name,
input_coralhealth_colonies_data,
input_coralhealth_condition_data,
input_benthiccodes,
default_condition_name = NULL,
exclude_conditions = NULL,
values_function = mean,
output_type = "extent",
minval = 0 # the minimum extent (in % in order to count as prevalence)
) {
# Step 1: Prepare the colony data
colony_data <- input_coralhealth_colonies_data %>%
select(colony_id,
Location,
SampleDate,
SurveyYear,
Period,
SampleType,
Method,
Transect,
Species) %>%
# filter(Period == "Annual") %>%
mutate(
# year = year(SampleDate),
year = SurveyYear,
program = "TCRMP",
replicatetype = "transect"
) %>%
rename(
coralspp = Species,
site = Location,
replicate = Transect,
date = SampleDate,
period = Period,
sampletype = SampleType,
method = Method
)
# Step 2: Join with condition data for the specified category
condition_data <- input_coralhealth_condition_data %>%
filter(category == category_name) %>%
select(colony_id, id, category, extent)
merged_data <- colony_data %>%
left_join(condition_data, by = "colony_id")
# Step 3: Join with benthic codes to get condition meanings
benthic_codes <- input_benthiccodes %>%
filter(Category == category_name) %>%
select(Code, Meaning)
final_data <- merged_data %>%
left_join(benthic_codes, by = c("id" = "Code")) %>%
mutate(
condition = ifelse(
is.na(Meaning),
ifelse(
is.null(default_condition_name),
paste0("No ", category_name),
default_condition_name
),
Meaning
)
# Do not replace NA extents; keep observed NAs
) %>%
select(
program,
site,
year,
date,
replicate,
replicatetype,
coralspp,
colony_id,
extent,
condition,
period,
sampletype,
method
) %>%
arrange(site, year, date, replicate, colony_id)
# Exclude specific conditions if needed
if (!is.null(exclude_conditions)) {
final_data <- final_data %>%
filter(!condition %in% exclude_conditions)
}
# Step 4: Pivot the data to wide format
pivoted_data <- final_data %>%
pivot_wider(
names_from = condition,
values_from = extent,
values_fn = function(x) {
if (all(is.na(x))) {
NA # All extents are NA; keep as NA
} else {
values_function(x, na.rm = TRUE)
}
},
values_fill = NA # Fill missing combinations with NA
)
# Step 5: Adjust column names to lowercase and remove spaces
non_condition_columns <- c(
"program",
"site",
"year",
"date",
"replicate",
"replicatetype",
"coralspp",
"colony_id",
"period",
"sampletype",
"method"
)
condition_columns <- setdiff(names(pivoted_data), non_condition_columns)
new_condition_names <- condition_columns %>%
set_names(.) %>%
map_chr(~ gsub(" ", "", tolower(.x)))
pivoted_data <- pivoted_data %>%
rename_with(~ new_condition_names[.], .cols = all_of(condition_columns))
# Update 'No category' and 'Any category' names
if (is.null(default_condition_name)) {
no_category_name <- gsub(" ", "", tolower(paste0("No ", category_name)))
} else {
no_category_name <- gsub(" ", "", tolower(default_condition_name))
}
any_category_name <- gsub(" ", "", tolower(paste0("Any ", category_name)))
# Step 6: Calculate 'No category' and 'Any category' (vectorized)
condition_columns_to_sum <- setdiff(
names(pivoted_data),
c(non_condition_columns, no_category_name)
)
if (length(condition_columns_to_sum) > 0) {
mat <- as.matrix(pivoted_data[, condition_columns_to_sum, drop = FALSE])
total_extent <- rowSums(mat, na.rm = TRUE)
} else {
# If nothing to sum, total is 0 for all rows (matches previous behavior)
total_extent <- rep(0, nrow(pivoted_data))
}
pivoted_data[[no_category_name]] <- 100 - total_extent
pivoted_data[[any_category_name]] <- total_extent
# Step 7: Convert to prevalence if output_type says so
if (output_type == "prevalence") {
prevalence_data <- pivoted_data %>%
mutate(
across(
all_of(c(condition_columns_to_sum, no_category_name, any_category_name)),
~ case_when(
. <= minval ~ 0,
. > minval ~ 1,
is.na(.) ~ 0
)
)
) %>%
select(-all_of(no_category_name)) # Remove 'No category' column
pivoted_data <- prevalence_data
}
return(pivoted_data)
}process_prev_extent processes both the extent and prevalence of each condition category and stores the results in a list.
# Function to process both extent and prevalence for each category
process_prev_extent <- function(category_name, input_coralhealth_condition_data) {
extent <- process_health_data(
category_name = category_name,
input_coralhealth_colonies_data = input_coralhealth_colonies_data,
input_coralhealth_condition_data,
input_benthiccodes = input_benthiccodes,
default_condition_name = paste0("no ", tolower(category_name)),
minval = 0 # no min val to t-hold extent by
)
prevalence <- process_health_data(
category_name = category_name,
input_coralhealth_colonies_data = input_coralhealth_colonies_data,
input_coralhealth_condition_data,
input_benthiccodes = input_benthiccodes,
default_condition_name = paste0("no ", tolower(category_name)),
output_type = "prevalence",
minval = ifelse(category_name == "Bleaching", 5, 0) # count as one instance if > 0 % extent
)
list(extent = extent, prevalence = prevalence)
}The workflow runs process_prev_extent over every condition category. This step takes a while.
# Set up parallel backend- I did not find this to be much faster
# plan(multisession)
invisible(system.time(
condition_list <- lapply(
condition_categories,
process_prev_extent,
input_coralhealth_condition_data = input_coralhealth_condition_data
)
))
# Assign results to named list variables for easier access later
names(condition_list) <- condition_categoriesprocess_prevalence_summary calculates the prevalence of the specified health conditions among coral colonies.
# category <- "Bleaching" # example category, replace with actual category from condition_categories
# data <- condition_list[[category]]$prevalence
# data <- data %>% filter(site == "Black Point")
# # data <- data %>% filter(replicate == "5" & site == "Flat Cay")
# condition_columns <- names(condition_list[[category]]$prevalence %>% dplyr::select(-starts_with("any"))) %>%
# .[!. %in% c(
# "site",
# "year",
# "date",
# "replicate",
# "period",
# "program",
# "replicatetype",
# "coralspp",
# "colony_id",
# "sampletype",
# "method",
# "SurveyYear"
# )]
# column <- tolower(category) # example column, replace with actual column if needed
process_prevalence_summary <- function(data, condition_columns, column = NULL) {
# Identify the columns to group by
grouping_cols <- intersect(
# note: this is where we drop method because rmd duplicates
c("site", "year", "replicate","date", "period"),
# c("site", "SurveyYear", "year","date", "replicate", "period"),
# c("site", "year","date", "period"),
# c("site", "year", "date", "replicate", "period"),
names(data)
)
# Create a new column indicating if a colony has any of the specified conditions
data <- data %>%
mutate(any_condition = rowSums(across(all_of(condition_columns)) > 0, na.rm = TRUE) > 0)
# Calculate prevalence
result <- data %>%
group_by(across(all_of(grouping_cols))) %>%
summarize(
ncolonies = n_distinct(colony_id),
# date = min(date), # for any cases where surveys occured over 2 days
across(
all_of(condition_columns),
~ sum(.x > 0, na.rm = TRUE) / ncolonies * 100,
.names = "prev_{.col}"
),
prev_any = sum(any_condition, na.rm = TRUE) / ncolonies * 100,
.groups = "drop"
) # %>%
# mutate(date = as.Date(date))
# Add 'no' column if specified
if (!is.null(column)) {
no_column <- paste0("prev_no", column)
any_column <- paste0("prev_any", column)
result <- result %>%
rename(!!any_column := prev_any) %>%
mutate(
!!no_column := 100 - !!sym(any_column)
)
}
# Reorder columns based on condition_columns argument
prev_condition_columns <- paste0("prev_", condition_columns)
result <- result %>%
select(all_of(grouping_cols), ncolonies, all_of(prev_condition_columns), everything())
return(result)
}The workflow applies process_prevalence_summary to every condition category.
for (category in condition_categories) {
# Get the column names for the current category
category_columns <- names(condition_list[[category]]$prevalence %>% dplyr::select(-starts_with("any"))) %>%
.[!. %in% c(
"site",
"year",
"date",
"replicate",
"period",
"program",
"replicatetype",
"coralspp",
"colony_id",
"sampletype",
"method",
"SurveyYear"
)]
if (length(category_columns) == 0) {
next # Skip if there are no condition columns
}
# Calculate prevalence summary
condition_list[[category]]$prevalence_summary <- process_prevalence_summary(
condition_list[[category]]$prevalence,
condition_columns = category_columns,
column = tolower(category)
)
}process_extent_summary computes the extent of the specified health conditions among coral colonies.
# category <- "Bleaching" # example category, replace with actual category from condition_categories
# data <- condition_list[[category]]$extent
# data <- data %>% filter(replicate == "5" & site == "Flat Cay")
# # data <- data[300:400,]
# condition_columns <- names(condition_list[[category]]$prevalence %>% dplyr::select(-starts_with("any"))) %>%
# .[!. %in% c(
# "site",
# "year",
# "date",
# "replicate",
# "period",
# "program",
# "replicatetype",
# "coralspp",
# "colony_id",
# "sampletype",
# "method",
# "SurveyYear"
# )]
# column <- tolower(category) # example column, replace with actual column if needed
process_extent_summary <- function(data, condition_columns, column = NULL) {
# Identify the columns to group by
grouping_cols <- intersect(
# note: this is where we drop method because rmd duplicates
c("site", "year","replicate", "date","period"),
names(data)
)
# # Create the condition column name
# condition_col <- sym(paste0("any", column))
#
# # Create a new column indicating if a colony has any of the specified conditions
# data <- data %>%
# mutate(sym(condition_col) = rowSums(across(all_of(condition_columns)) > 0, na.rm = TRUE) > 0)
# Create the condition column name
condition_col <- paste0("any", column) # leave it as a string, not sym yet
nocol <- paste0("no", column) # for the no category
# Create the new column
data <- data %>%
mutate(!!condition_col := rowSums(across(all_of(condition_columns)), na.rm = TRUE)) %>%
mutate(!!condition_col := ifelse(!!sym(condition_col) > 0, !!sym(condition_col), NA_real_))
# 29 july relplace na with 0
condition_cols_all <- c(condition_columns, condition_col)
# removed aug 1
# data <- data %>%
# mutate(across(all_of(condition_cols_all), ~ replace_na(., 0)))
#
result <- data %>%
# filter(!!condition_col >= 0, !!condition_col <= 100) %>%
group_by(across(all_of(grouping_cols))) %>%
summarize(across(all_of(condition_cols_all),
# -c(program, replicatetype, coralspp, colony_id, sampletype, method),
# ~ mean(.x, na.rm=TRUE),
~ ifelse(all(is.na(.x)), NA_real_, mean(.x, na.rm = TRUE)),
# ~ ifelse(mean(.x, na.rm = TRUE) > 0, mean(.x, na.rm = TRUE), NA_real_),
.names = "ext_{.col}"
), .groups = "drop") %>%
# mutate(!!sym(paste0("ext_", condition_col)) := replace_na(!!sym(paste0("ext_", condition_col)), 0)) %>%
mutate(date = as.Date(date))
# Calculate prevalence
# result <- data %>%
# group_by(across(all_of(grouping_cols))) %>%
# summarize(
# ncolonies = n_distinct(colony_id),
# across(
# all_of(condition_columns),
# ~ sum(.x > 0, na.rm = TRUE) / ncolonies * 100,
# .names = "prev_{.col}"
# ),
# prev_any = sum(any_condition, na.rm = TRUE) / ncolonies * 100,
# .groups = "drop"
# ) %>%
# mutate(date = as.Date(date))
# result <- data %>%
# # filter(!!condition_col >= 0, !!condition_col <= 100) %>%
# group_by(across(all_of(grouping_cols))) %>%
# summarize(across(
# -c(program, replicatetype, coralspp, colony_id, sampletype, method),
# ~ ifelse(mean(.x, na.rm = TRUE) > 0, mean(.x, na.rm = TRUE), NA_real_),
# .names = "ext_{.col}"
# ), .groups = "drop") %>%
# mutate(!!sym(paste0("ext_", condition_col)) := replace_na(!!sym(paste0("ext_", condition_col)), 0)) %>%
# mutate(date = as.Date(date))
# create new column names for extent
result <- result %>%
# mutate(!!sym(paste0("ext_", condition_col)) := rowSums(across(all_of(
# paste0("ext_", condition_columns)
# )), na.rm = TRUE)) %>%
mutate(!!sym(paste0("ext_", nocol)) := 100 - !!sym(paste0("ext_", condition_col)))
# Reorder columns based on condition_columns argument
ext_condition_columns <- paste0("ext_", condition_columns)
result <- result %>%
select(all_of(grouping_cols), all_of(ext_condition_columns), everything())
# july 2025 - replace NAs with 0s for any columns that start with ext_ (this might have consequences I dont know yet).
# Place no after the last grouping column
result <- result %>%
mutate(across(starts_with("ext_"), ~ ifelse(is.na(.), 0, .))) %>%
relocate(
starts_with("ext_no"),
.after = starts_with("ext_any")
)
return(result)
}The workflow applies process_extent_summary to every condition category.
for (category in condition_categories) {
# Get the column names for the current category
category_columns <- names(condition_list[[category]]$prevalence %>% dplyr::select(-starts_with("any"))) %>%
.[!. %in% c(
"site",
"year",
"date",
"replicate",
"period",
"program",
"replicatetype",
"coralspp",
"colony_id",
"sampletype",
"method",
"SurveyYear"
)]
column <- tolower(category) # example column, replace with actual column if needed
if (length(category_columns) == 0) {
next # Skip if there are no condition columns
}
# Calculate extent summary
condition_list[[category]]$extent_summary <- process_extent_summary(
condition_list[[category]]$extent,
condition_columns = category_columns,
column = tolower(category)
)
}process_plot_healthdata builds a per-site time series of a coral condition metric across many sites.
process_plot_healthdata <- function(data, column_to_plot, title = NULL, y_label = NULL, facet_ncol = 4, start_year, end_year) {
# Ensure the column exists
if (!column_to_plot %in% names(data)) {
stop(paste("Column", column_to_plot, "not found in the data."))
}
# Set default title and y-label if not provided
if (is.null(title)) {
title <- paste("Coral", column_to_plot, "Over Time")
}
if (is.null(y_label)) {
y_label <- paste(column_to_plot, "(%)")
}
# Convert start_yearand end_year to proper dates
start_year<- as.Date(paste0(start_year, "-01-01"))
end_year <- as.Date(paste0(end_year, "-12-31"))
# Ensure 'date' is of Date type
data <- data %>%
mutate(date = as.Date(date))
# Summarize the data
summary_data <- data %>%
group_by(site, date, period) %>%
summarise(
mean_value = mean(!!sym(column_to_plot), na.rm = TRUE),
sd_value = sd(!!sym(column_to_plot), na.rm = TRUE),
se_value = sd_value / sqrt(n()),
lower_ci = mean_value - sd_value,
# lower_ci = mean_value - sd_value,
upper_ci = mean_value + sd_value,
min_value = min(!!sym(column_to_plot), na.rm = TRUE),
max_value = max(!!sym(column_to_plot), na.rm = TRUE),
# upper_ci = mean_value + sd_value,
.groups = "drop"
) %>%
# Join with sitedat to get depth
left_join(sitedat %>% dplyr::select(site, depth), by = "site") %>%
# Reorder site from shallow to deep depths
mutate(site = factor(site, levels = unique(site[order(depth)]))) %>%
arrange(site, date)
# Handle missing period values
summary_data <- summary_data %>%
mutate(period = ifelse(is.na(period), "No Data", period))
# y limits
# ylim_min <- -max(summary_data %>% na.omit() %>% mutate(mmax = upper_ci) %>% pull(mmax))/10
# ylim_max <- max(summary_data %>% na.omit() %>% mutate(mmax = upper_ci) %>% pull(mmax))*1.1
#
# ylim_min <- min(summary_data %>% na.omit() %>% mutate(mmin = min(lower_ci, min_value) %>% pull(mmin))*1.1)
# ylim_max <- max(summary_data %>% na.omit() %>% mutate(mmax = max(upper_ci, max_value) %>% pull(mmax))*1.1)
#
ylim_min <- ifelse(is.na(min(
c(summary_data$lower_ci, summary_data$min_value), na.rm = TRUE) * 1.1), -1,
min(c(summary_data$lower_ci, summary_data$min_value), na.rm = TRUE) * 1.1)
ylim_min <- ifelse(ylim_min < -1, -1, ylim_min) # ensure minimum is not less than -1
ylim_max <- ifelse(is.na(max(
c(summary_data$upper_ci, summary_data$max_value), na.rm = TRUE) * 1.1), 10,
max(c(summary_data$upper_ci, summary_data$max_value), na.rm = TRUE) * 1.1)
ylim_max <- ifelse(ylim_max > 100, 100, ylim_max) # ensure maximum is not greater than 10
# example summary_data
# summary_data <- data.frame(
# site = c("Site1", "Site1", "Site2", "Site2"),
# date = as.Date(c("2020-01-01", "2021-01-01", "2020-01-01", "2021-01-01")),
# period = c("Period1", "Period1", "Period2", "Period2"),
# mean_value = c(50, 60, 70, 80),
# sd_value = c(5, 6, 7, 8),
# se_value = c(2.5, 3, 3.5, 4),
# lower_ci = c(47.5, 54, 66.5, 76),
# upper_ci = c(52.5, 66, 73.5, 84)
# )
# if (is.infinite(ylim_max)) {
# ylim_min = -1
# ylim_max = 10
# }
# Define custom colors (ensure it covers all periods)
periods <- unique(summary_data$period)
custom_colors <- c("blue3", "red3", "green4", "purple4", "orange3", "brown4", "pink3", "gray50")
if (length(custom_colors) < length(periods)) {
# Generate additional colors if needed
custom_colors <- scales::hue_pal()(length(periods))
}
names(custom_colors) <- periods
# Create the plot
ggplot(summary_data, aes(x = date, y = mean_value, group=site)) +
geom_ribbon(aes(ymin = min_value, ymax = max_value), fill = "gray50", alpha = 0.2) +
geom_line(color="black",linewidth=0.2)+
geom_point(size = 1, aes(color = period)) +
geom_errorbar(aes(ymin = lower_ci, ymax = upper_ci, color = period), linewidth = 0.2) +
facet_wrap(~site, ncol = facet_ncol) +
scale_x_date(
limits = c(start_year, end_year),
date_breaks = "1 year", # Adjust as needed
date_labels = "%Y",
expand = c(0, 0)
) +
scale_y_continuous(
expand = c(0, 0),
breaks = if (ylim_max > 10) seq(0, 100, 10) else seq(0, 10, 2)) +
# coord_cartesian(ylim = c(0, 100)) + # Adjust y-limits to fit the data
coord_cartesian(ylim = c(ylim_min,ylim_max)) +
# coord_cartesian(ylim = c(-0.5*max(summary_data %>% mutate(mmax = mean_value+upper_ci) %>% pull(mmax)), ceiling(max(summary_data %>% mutate(mmax = mean_value+upper_ci) %>% pull(mmax))))) +
# coord_cartesian(ylim = c(0-(0.1*ceiling(max(summary_data %>% mutate(mmax = mean_value+upper_ci) %>% pull(mmax)))), ceiling(max(summary_data %>% mutate(mmax = mean_value+upper_ci) %>% pull(mmax))))) +
scale_color_manual(values = custom_colors,guide = guide_legend(nrow = 1)) +
labs(
title = title,
subtitle = "Mean ± SD across transects at each site",
x = "Year",
y = y_label,
color = "Period" # Update legend title
) +
theme_minimal(base_size = 10) +
theme(
legend.position = "bottom",
strip.background = element_rect(fill = "gray90", color = NA),
strip.text = element_text(size=8, face = "bold"),
panel.grid.minor = element_blank(),
panel.border = element_rect(color = "gray80", fill = NA),
plot.title = element_text(face = "bold", size = 8),
plot.subtitle = element_text(size = 8, color = "gray30"),
axis.title = element_text(face = "bold"),
axis.text.x = element_text(size=6, angle = 90, hjust = 1)
)
}What happens here: the loop builds one faceted figure per condition metric (prevalence and extent) and collects them in condition_plots_faceted. The examples and the saved figure set both draw from this list.
# Create separate lists to store faceted and overlaid plots
condition_plots_faceted <- list()
# condition_plots_overlaid <- list()
process_coltomeaning <- function(col2){
if(col2 %in% gsub(" ","",tolower(input_benthiccodes$Meaning))){
ind <- which(col2 == gsub(" ","",tolower(input_benthiccodes$Meaning)))
input_benthiccodes$Meaning[ind]
} else {
col2
}
}
# Loop through each interaction category
for (category in condition_categories) {
# Plot prevalence
prevalence_data <- condition_list[[category]]$prevalence_summary
prevalence_columns <- names(prevalence_data)[grep("^prev_", names(prevalence_data))]
for (col in prevalence_columns) {
plot_title <- paste("Prevalence of condition:",
tolower(process_coltomeaning(gsub("^prev_", "", col))))
# Create faceted plot
condition_plots_faceted[[paste(category, col)]] <- process_plot_healthdata(
prevalence_data,
col,
plot_title,
"Prevalence (%)",
start_year = start_year_c,
end_year = end_year_c
)
}
# Plot extent
extent_data <- condition_list[[category]]$extent_summary
extent_columns <- names(extent_data)[grep("^ext_", names(extent_data))]
for (col in extent_columns) {
plot_title <- paste("Extent of condition:",
tolower(process_coltomeaning(gsub("^ext_", "", col))))
# Create faceted plot
condition_plots_faceted[[paste(category, col)]] <- process_plot_healthdata(
extent_data,
col,
plot_title,
"Extent (%)",
start_year = start_year_c,
end_year = end_year_c
)
}

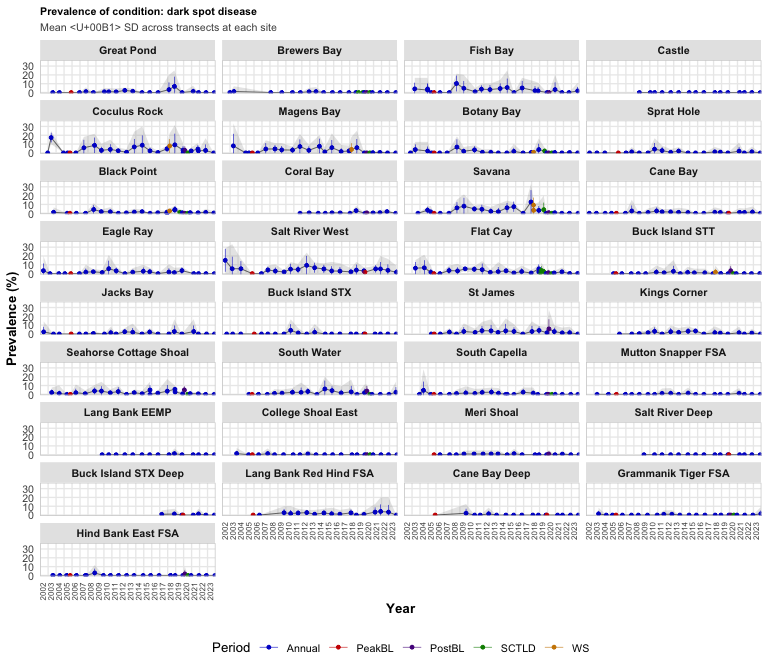

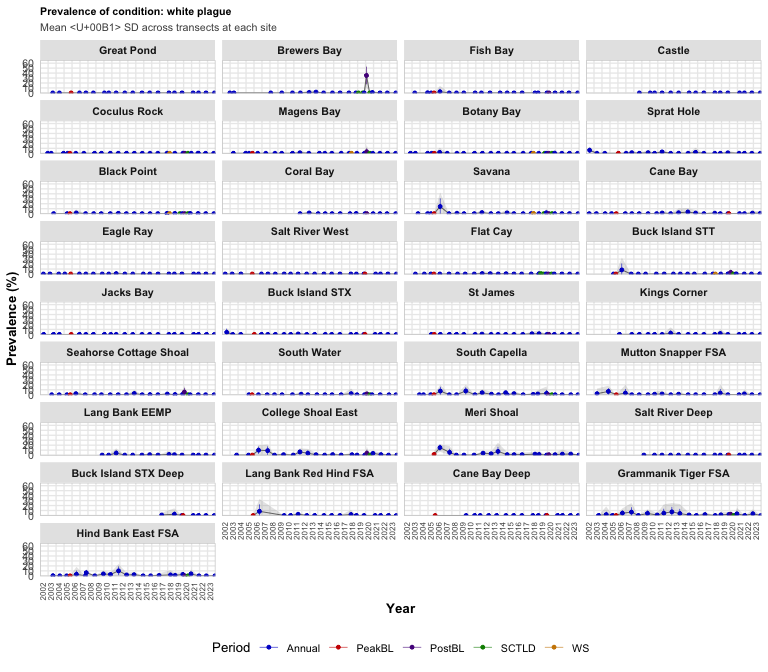

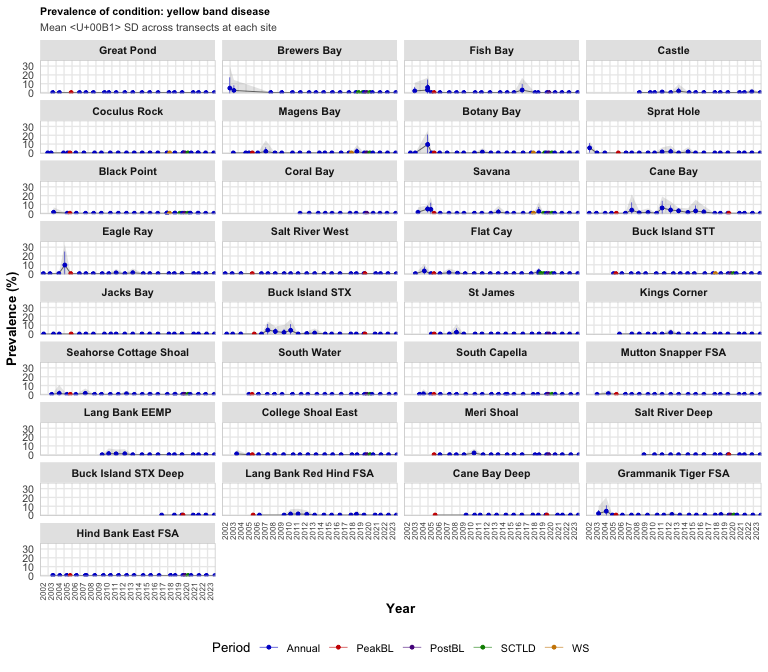

}What this shows: each panel in the panels below is one coral condition metric (prevalence or extent) plotted over time, with sites faceted shallow to deep. Points are the transect mean at a site and year, the vertical bars span mean ± SD across transects, and the gray envelope spans the observed minimum to maximum. The full set of per-condition figures is written to disk (see the Download section); the examples below preview three of them.
The workflow writes every condition figure to disk as a JPEG.
The workflow writes per-condition prevalence and extent CSVs plus matching metadata to outputs/, then offers them for download below.
Each condition offers the site-level prevalence and extent series (33 sites) as a CSV plus a metadata sidecar. The damage category is filtered out upstream, so disease, bleaching, and mortality are the three condition products.
s3pt1_coralcondition_mortalityprevalence_33sites_2002_2023.csvs3pt1_coralcondition_mortalityprevalence_33sites_2002_2023.txts3pt1_coralcondition_mortalityextent_33sites_2002_2023.csvs3pt1_coralcondition_mortalityextent_33sites_2002_2023.txtversion 1.0.0 • in-review • data ≤ 2023-12-31
